Gypsum Ceiling Section Machine

Gypsum Ceiling Section Machine

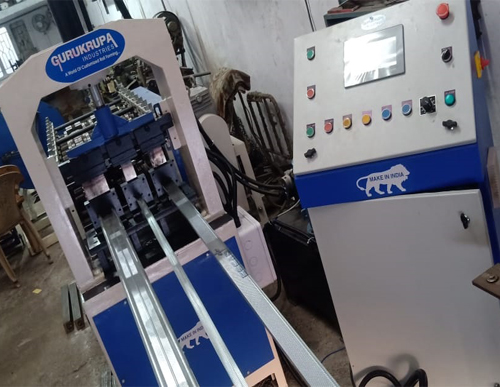

We are the prominent Manufacturer & Exporter of Gypsum Ceiling Section Machine, Gypsum Perimeter Machine, Intermediate Channel Making Machine that is made by using the premium quality Equipment. Our Gypsum Ceiling Section Machine is inflexibly checked to ensure the high performance and long life Durability. This Gypsum Ceiling Section Machine is widely used as the supporter of roof and wall ceiling in construction segment, such as Many Industries, Godown , trade fair centers. Z shape purlins are made from hot cold roll tools and straighten, hole punched, Pop Channel Machine,and roll former. You can Form different kind of profile in this machine.

  • D coiler 200 Kg cap.
  • Entry Gate with
  • Roll Forming Line with 8 station, 1 Gear Boxes & 5 H.P. electrical.
  • Control Panel semi auto
  • Cutting Unit (Hydro.)

Technical Specifications

  • Maximum sheet width that can be formed : 500 mm
  • Maximum sheet thickness in GI Strips that can be formed : 0.9
  • Horizontal distance between shafts : 165 mm
  • Number of forming stations : 8 nos.
  • Vertical station : 2 nos.
  • Total HP for Line : 7
  • Speed of the machine : 5mt/minit
  • Size of machine : 1600 x 1200 x 1100 mm

Mandrel Uncoiler

  • Coil weight : 200 KG Max
  • Coil width : 200 MM
  • Coil bore : 450 MM min, 510 MM max dia
  • Mandrel movement : Manually adjusted
  • Back Tension : Manually adjusted

Entry Gate

Entry gate will be provided for movement of sheet to roll former.

Main Base

The main base is MS fabricated structure and adequately ribbed to minimize the distortion. It is accurately machined on top and bottom surfaces the threaded holes are made on the bed for positioning the stands.

Mill stands (Station)

The stands are mounted on the bed of the machine the line alignment can be easily done due to guide ways arranged on the bed of the machine. Each forming head consists of a fixed housing and sliding type out board housing. The mill stands will be arranged to locate shafts mounted on taper bearings. For the top shafts the bearings are housed in the cartridge type bearing blocks. The bottom shaft bearings are located in the bored machined in the housings. The bottom arbors are fixed in position whereas the top arbors along with cartridge blocks could be raised or lowered in vertical guides machined in housings.

Roll shafts

The roll shafts dia. 55mm will be manufactured from quality steel and will be keyed to locate tooling.


The drive to the roll former will be by means of a gear box system. The main drive will be provided by means of 5 HP motor


One set of Tooling with EN31 grade will be from imported material suitable for your machine as standard supply. The same is involved in operations like rough machining, keyway, rough profiling, profile machining and inspection with final template for above.

Cutting Unit (Hydro)

Hydraulically operated power pack along with cutting die with 3 HP electrical.
